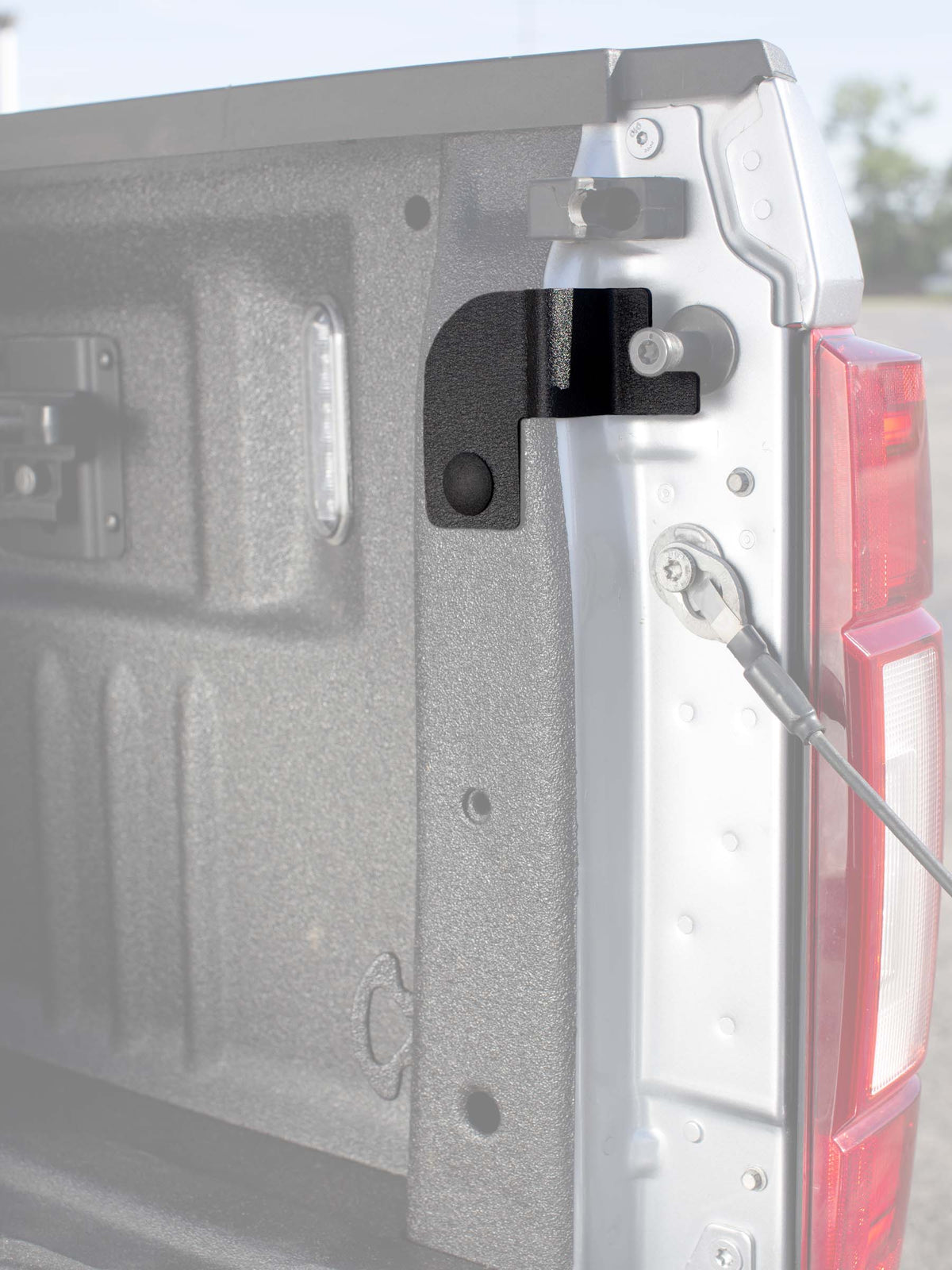

TailGuard Installation

First - replace your tailgate cover screws. #8 sheet metal screws of 3/4" length.

This panel is an easy way to bypass tailgate devices, including mine. Replace them.

Information about the hardware: custom size and thickness washers were needed in order to ensure maximum contact with the back of the bed post while not encroaching on any of the bends of the bed post, including the dimple. Aluminum was employed due it being corrosion resistant and more economical than stainless steel. The poly carbonate bushings provided eliminate the good amount of play that would exist with a 1/2" bolt going through a 3/4" hole. This makes install much easier. Its made of poly carbonate which has good material characteristics and is economical because I can 3d print them myself.

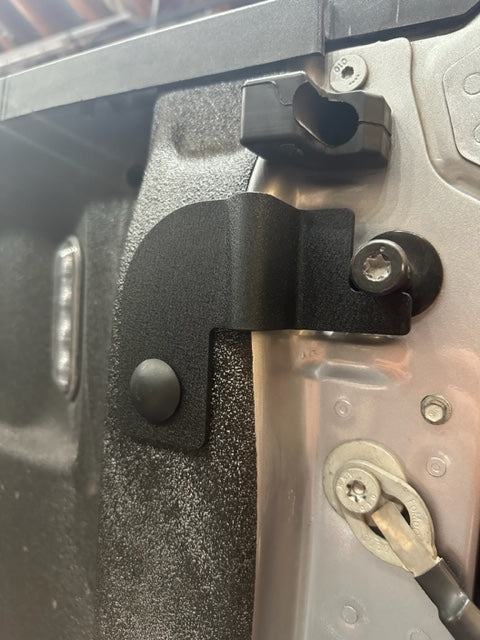

Installing this bracket will require removal of the taillights. There are two plastic retainers on each side that hold the forward-most part of the taillight. You shouldn't need to replace them removing the taillight one time. However, if you do need/want to replace them, here are the part numbers:

Top Retainer (2017-2024) - W718369S300
Bottom Retainer (2020-2024) - W721224S300

Rubber Tailgate Bumpers (2017-2022): https://amzn.to/3XX9zTo

**double check these p/n's fit your pickup as they could vary depending on year/trim

 Installation video
